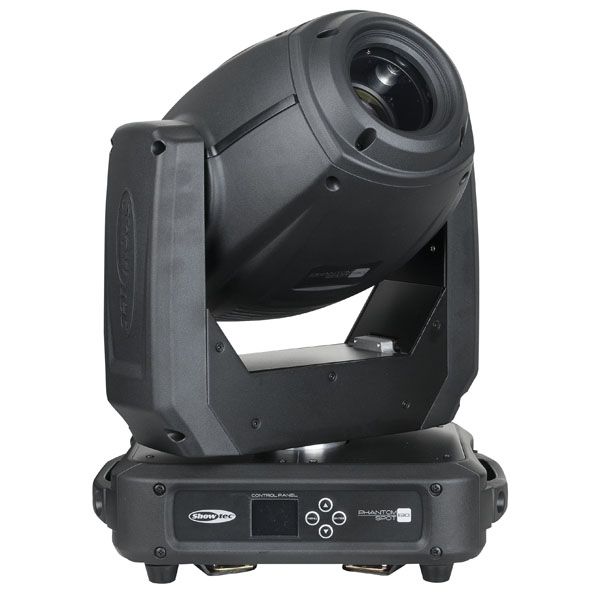

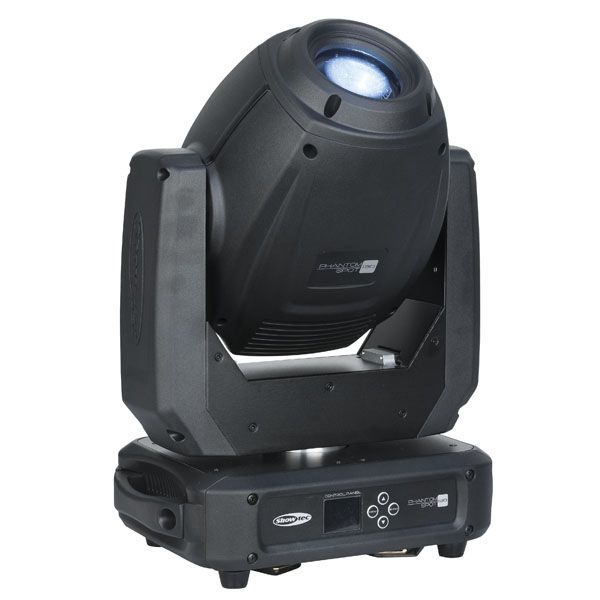

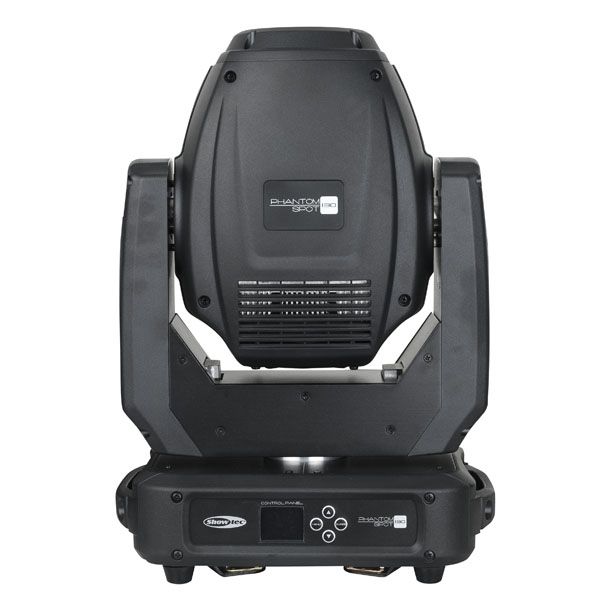

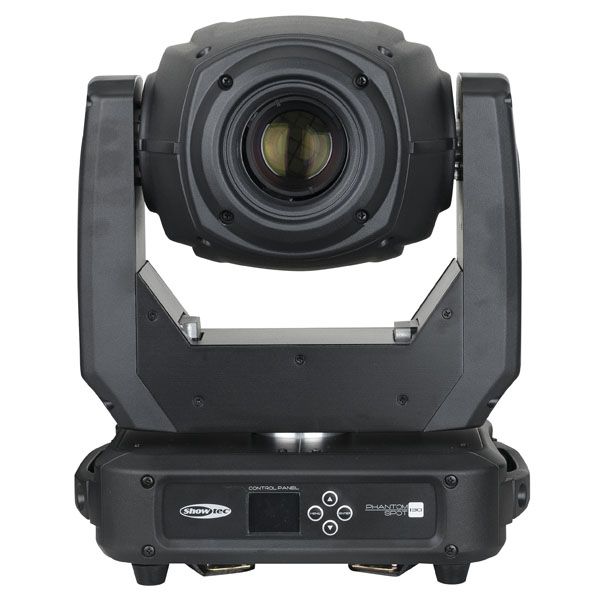

Showtec Phantom 130 Spot
29,00 €
inkl. MwSt.
- Artikel-Nr.: SW10054
SPECIFICATIONS Output Lux @ 5m: 5200 (12°) Beam Angle: 12° - 21° Light Source: 130W... mehr
Produktinformationen "Showtec Phantom 130 Spot"
SPECIFICATIONS
Output
Lux @ 5m: 5200 (12°)
Beam Angle: 12° - 21°
Light Source: 130W White LED
Electrical
Input voltage: 100~240VAC, 50/60Hz (auto ranging)
Power consumption: 300W max.
Control
On-Board: Full colour display
Control Protocol: DMX512, Auto, Sound, Manual, Master-Slave
Control Personality: Advanced 16ch /Basic 12ch
Optical system
Dimmer: 0-100%
Strobe: 0-20Hz
Focus: Motorized
Zoom: Motorized
Prism: 6-facet circular & 5- facet linear prism rotating prism
Movement
Pan: 540°
Tilt: 270°
Pan/Tilt resolution: 16 bit
Special: Pan / Tilt movement blackout, User-selectable Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt movement
Gobos & Colours
Fixed Gobowheel: 7 gobos
Rotating Gobowheel: 7 gobos
Gobo functions: Gobo-flow effect,Gobo shake
Rotation: Bi-directional
Colourwheel: 7 dichroic-filters + white
Colour functions: Split colours, Rainbow-flow effect
Physical
Colour: Black
Housing: Metal & Flame-retardant plastic
Data Connection: XLR 3p in- & output
Power connection: Pro Power in- & output
Dimensions (WxDxH): 321 x 211 x 462 mm
Weight: 13Kg
Certification and Safety
Certification: CE
Max. ambient Temp.: 40°C
Lux @ 5m: 5200 (12°)
Beam Angle: 12° - 21°
Light Source: 130W White LED
Electrical
Input voltage: 100~240VAC, 50/60Hz (auto ranging)
Power consumption: 300W max.
Control
On-Board: Full colour display
Control Protocol: DMX512, Auto, Sound, Manual, Master-Slave
Control Personality: Advanced 16ch /Basic 12ch
Optical system
Dimmer: 0-100%
Strobe: 0-20Hz
Focus: Motorized
Zoom: Motorized
Prism: 6-facet circular & 5- facet linear prism rotating prism
Movement
Pan: 540°
Tilt: 270°
Pan/Tilt resolution: 16 bit
Special: Pan / Tilt movement blackout, User-selectable Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt movement
Gobos & Colours
Fixed Gobowheel: 7 gobos
Rotating Gobowheel: 7 gobos
Gobo functions: Gobo-flow effect,Gobo shake
Rotation: Bi-directional
Colourwheel: 7 dichroic-filters + white
Colour functions: Split colours, Rainbow-flow effect
Physical
Colour: Black
Housing: Metal & Flame-retardant plastic
Data Connection: XLR 3p in- & output
Power connection: Pro Power in- & output
Dimensions (WxDxH): 321 x 211 x 462 mm
Weight: 13Kg
Certification and Safety
Certification: CE
Max. ambient Temp.: 40°C
